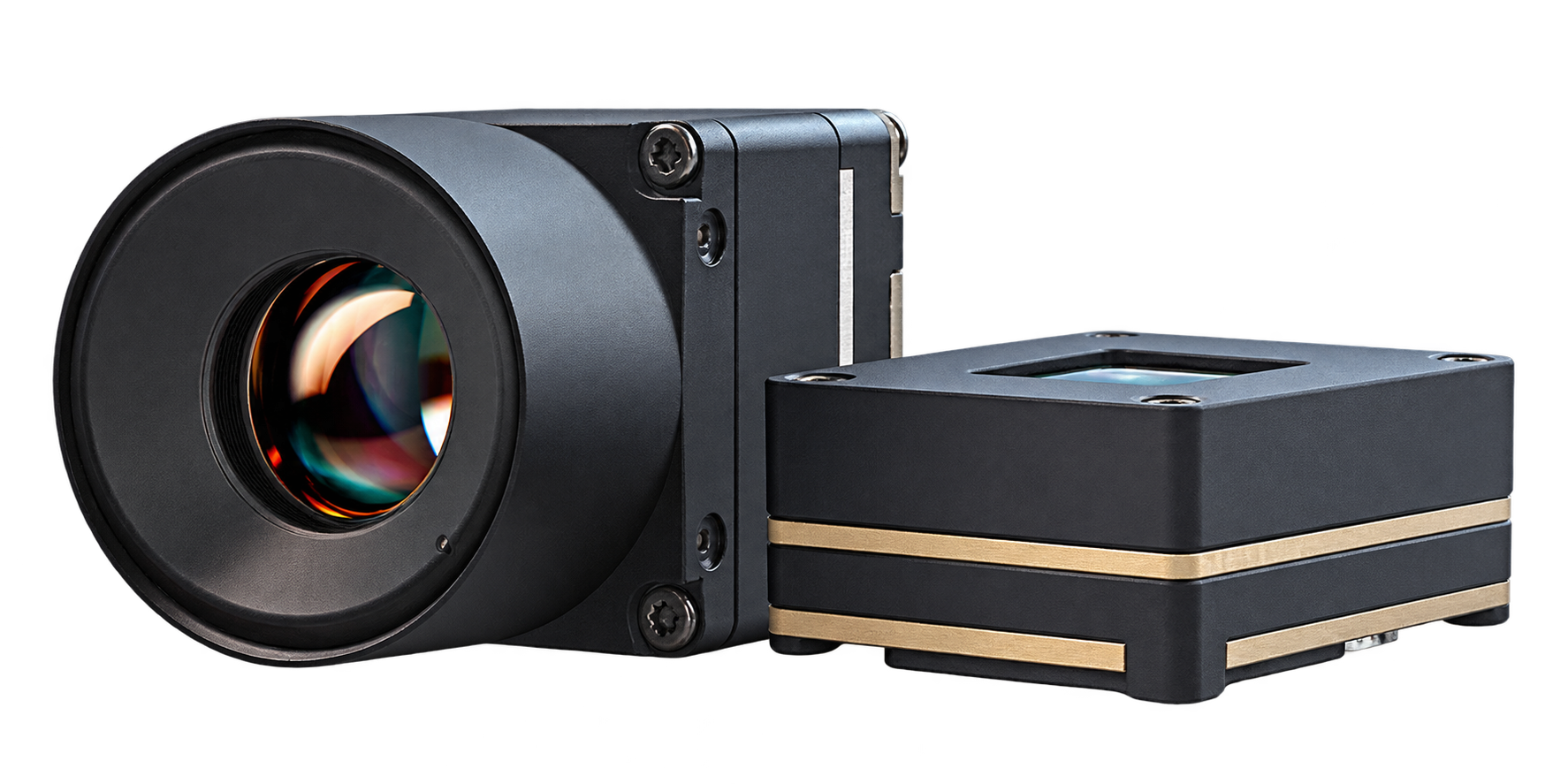

Engineered to satisfy demanding SWaP (Size, Weight, Power, and Price) requirements, this uncooled infrared camera module functions as an ultra-compact thermal imaging engine. Equipped with a high-frame-rate 12 µm VOx WLP detector and a second-generation infrared ISP chip, it achieves excellent thermal sensitivity (NETD ≤ 40 mK) for crisp and continuous high-definition thermal imaging.
Equipped with a standard shutterless algorithm, the module guarantees smooth, uninterrupted observation by eliminating the screen freeze commonly caused by mechanical shutter recalibrations. With an ultra-miniature footprint of just 21 × 21 × 10.3 mm, an ultralight core profile (under 7 g), and minimal power consumption, it provides multi-interface support (MIPI, USB 2.0, DVP, PAL/NTSC) for effortless integration into electro-optical gimbals, laser rangefinder systems, handheld night-vision optics, and tactical inspection platforms.
| Technical Parameter | HW2 | ||
|---|---|---|---|
| General | |||
| Detector Type | Vanadium Oxide (VOx) Uncooled Infrared Focal Plane Array Detector | ||
| Resolution | 256×192 | 384×288 | 640×512 |
| Detector Frame Rate | 25/50Hz | 30/60Hz | 30/60Hz |
| Pixel Pitch | 12 µm | ||
| Spectral Response | 8 ~ 14 µm | ||
| NETD | ≤ 40 mK @ 25°C, F#1.0, 25 Hz | ||
| Thermal Time Constant | < 12 ms | ||
| Image Adjustment | |||
| Non-uniformity Correction | Shutter correction / Shutterless algorithm correction | ||
| Brightness/Contrast | 0 ~ 100 selectable levels | ||
| Polarity / Pseudo-color | White hot / Black hot / Multiple pseudo-color palettes supported | ||
| Digital Zoom | 1.0 ~ 8.0× continuous zoom (0.1 step) | ||
| Image Mirror | Vertical / Horizontal / Diagonal | ||
| Electrical Parameters | |||
| Analog Video | PAL / NTSC | ||
| Digital Video | DVP / BT656 / USB 2.0 / MIPI | ||
| Communication Interface | UART / I2C / USB 2.0 | ||
| Power Input | 5V | ||
| Typical USB Output Power @ 25°C | < 0.35 W | < 0.42 W | < 0.7 W |
| Physical Characteristics | |||
| Weight (without lens) | < 7 g | < 8.6 g | |
| Dimensions (without lens) | 21 × 21 × 10.3 mm | ||
| Environmental Adaptability | |||
| Operating Temperature | -40°C ~ +80°C | ||
| Storage Temperature | -50°C ~ +85°C | ||
| Humidity | 5% - 95%, non-condensing | ||
| Vibration | 6.06 g, random vibration, all axes | ||
| Shock | 80 g @ 4 ms, terminal peak sawtooth, 3 axes / 6 directions | ||
* Note 1: The above parameters were measured under laboratory conditions. Actual specifications and test methods are subject to the test report.
| Lens Code | Focal Length | F-number | Focusing Type | IFOV | Detection (Human) | Recognition (Human) | Identification (Human) | Weight (Lens + Flange) |
|---|---|---|---|---|---|---|---|---|
| 09110X | 9.1 mm | F1.0 | Manual Focus | 1.3 mrad | 1.1 km | 0.25 km | 0.17 km | 10.5 g ±5% |
| 13510X | 13.5 mm | F1.0 | Manual Focus | 0.9 mrad | 1.5 km | 0.37 km | 0.19 km | 15.2 g ±5% |
| 15010X | 15.0 mm | F1.0 | Manual Focus | 0.8 mrad | 1.7 km | 0.42 km | 0.21 km | 20.48 g ±5% |
| 18011X | 18.0 mm | F1.1 | Manual Focus | 0.7 mrad | 2.0 km | 0.50 km | 0.25 km | 25 g ±5% |
| 25010X | 25.0 mm | F1.0 | Fixed Focus | 0.48 mrad | 2.8 km | 0.70 km | 0.35 km | 67 g ±2% |
| 35010X | 35.0 mm | F1.0 | Fixed Focus | 0.34 mrad | 3.9 km | 0.97 km | 0.49 km | 111 g ±2% |
| 55010X | 55.0 mm | F1.0 | Fixed Focus | 0.22 mrad | 6.1 km | 1.50 km | 0.76 km | 191 g ±2% |
* Note: Detection, recognition, and identification (DRI) ranges are calculated based on Johnson's criteria using a standard human target (1.8 × 0.5 × 0.3 m)[cite: 1].
Non-Disclosure Agreement (NDA):We respect your proprietary system designs. Huanxin is glad to sign a mutual NDA before receiving detailed payload drawings or project specifications.
